Intelligent
Plant Protection Drone

Green crops with sky view with E-Series Pro of agricultural drone is spraying water onto the crops.

Applicable to all kinds of field and economic
crop plant protection services

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Stereo Vision
With Neural Network

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Map/Location
Analysis In 3D

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Real Time-Parallel
Processing & Execution

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Synchronous
Field Measurements

Sensory Modality

Comprehensive | Accurate | Tactful | Ever-Ready | Weather & Terrain: No Bars | Vehicle-Level Autonomous Driving Technology

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.
Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Mist Spray Droplet
Size 20-250µm

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

IP67
Waterproof

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

20 Liters
Tank

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Plug-In Fast
Charging

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

RTK Centimeter
Level Accuracy

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Obstacle Avoidance
with FPV Camera

INDOWINGS
Hyper Intelligent Control System

Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.
Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

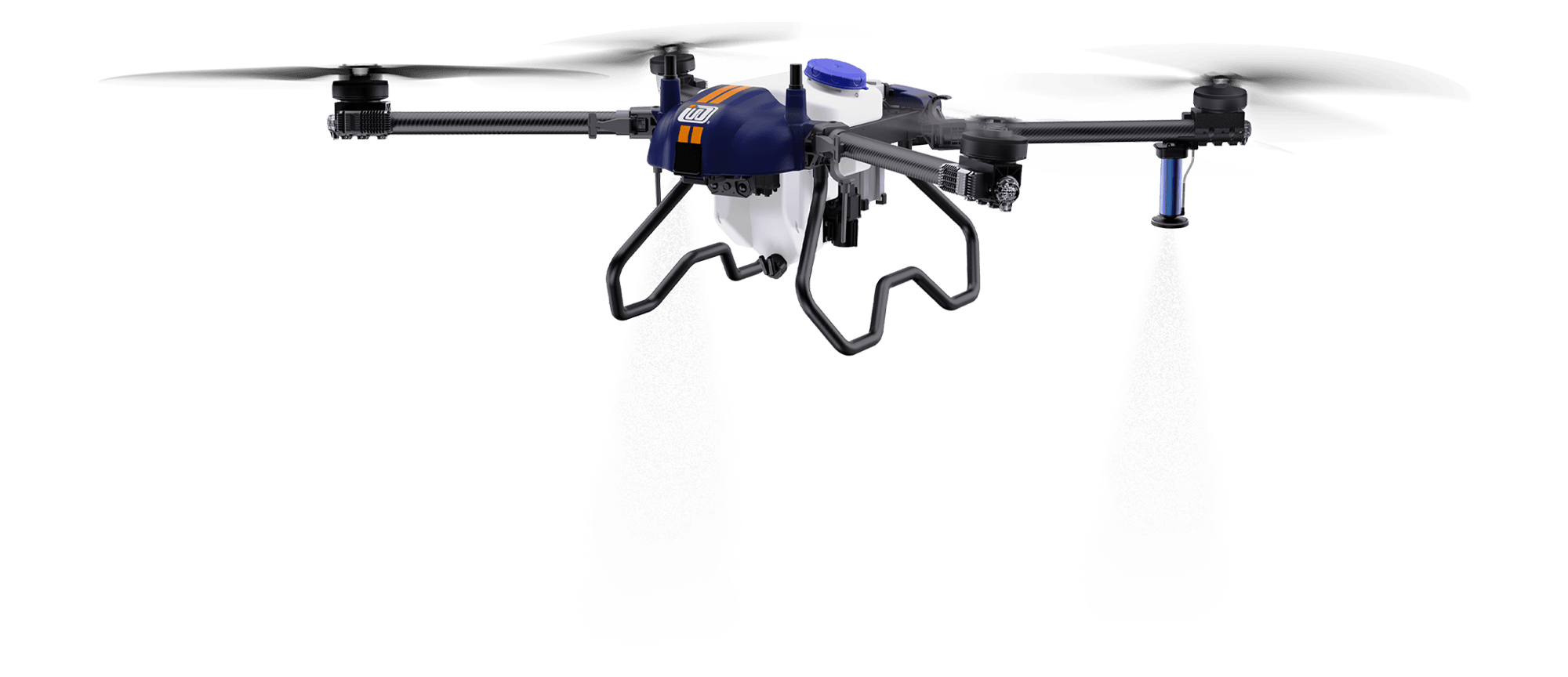

Unique CCMS Mist Spray (Global Patented)

  • 20-250µm Mist Spray for Multiple Crop
  • Droplets Bimodal Distribution
  • Perfect Penetration for Trees
  • Applicable with Wettable Powder
  • 2 Centrifugal Mist Nozzles
Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

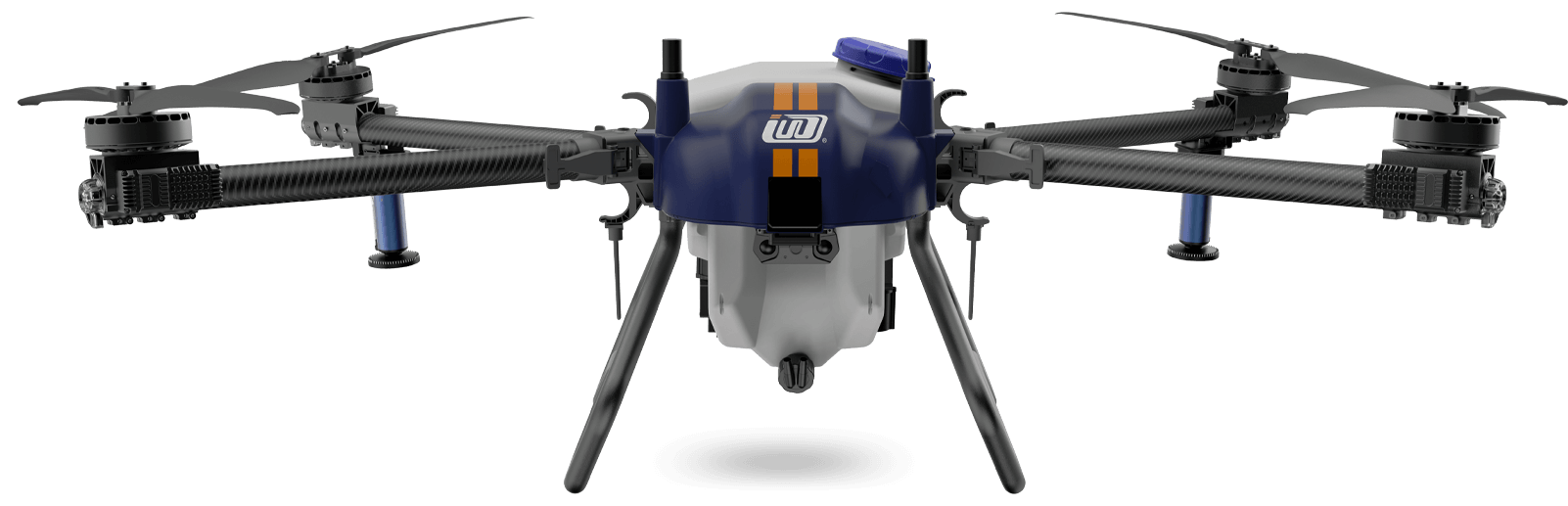

Wide Angle Obstacle
Avoidance

  • Front + Rear Obstacle Avoidance Radar
  • Safe and Secure Operation
  • 5 - 30m Distance
  • Front FPV Camera
Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Terrain Following


  • Application with Complex
    Fields Environmen
  • Automatically follow the terrain and maintain the altitude
  • Ultra Close to Canopy
Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

RTK Base Accurate
Positioning

  • Centi-Meter level accurate positioning system
  • Safe & Secure for the day & night operation
  • Intelligent remote control with bright LCD Screen
  • Flexible operation between autopilot & manual
Green crops with sky view with e-series pro of agricultural drone is spraying water onto the crops.

Plug & Fly Fast Charging
Smart Battery

  • Fast Charging Battery
  • Fast Charging Battery
  • 600 Life Cycles
  • Auto Balance, BMS Memory & Protection Board

Specifications

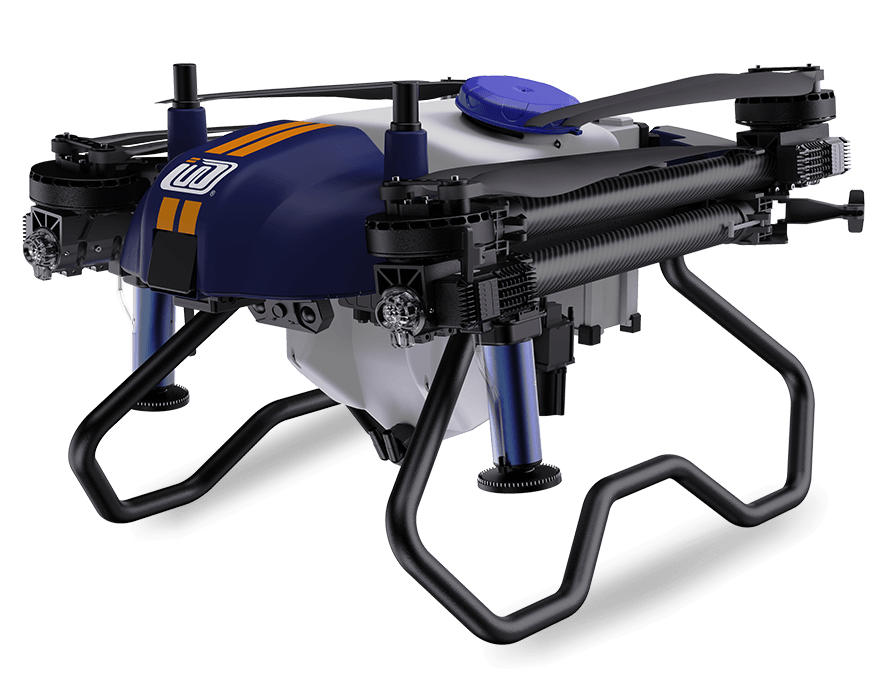

The E-SERIES PRO intelligent plant protection drone is an intelligent multi-rotor plant protection drone.

Model Name : E-Series Pro
Payload : 20L
Dimensions(Unfold) : 1305 X 1640 X 600mm
Dimensions(Fold) : 915 X 645 X 600mm
Nozzles : 2 Centrifugal Mist Nozzles
Maximum Take-off : 67.1 Kg Weight
Battery : 20,000mAh, 13S
Spray Width : 3 - 8m
Speed Limit : 2 - 7m/s
Flowrate : 5L / minute X 2
Efficiency / Hou : 20 ~ 250 µm


SUPERCHARGER
  • 12 Kg
  • 5000w,
  • Dual Fast Charging
  • "Generator + Household Electricity"
  • Dual-mode input,
  • More safer

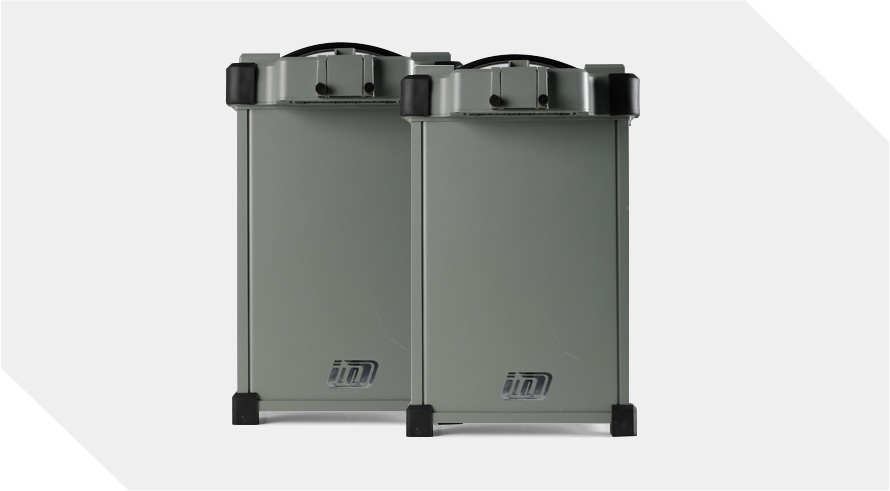

New Generation

INTELLIGENT BATTERY

(20,000 MAH)

  • Same supply chain as Tesla
  • Support up to 3C fast charge
  • Full charge in 18 minutes
  • Low temperature rise,
  • Excellent heat dissipation,
  • No need for water cooling,
  • Fast charge
  • Intelligent power management
  • Battery status is clear at a glance
  • Unlimited charge and discharge cycles within the warranty
DC DUAL FAST CHARGING
STATION
  • Same supply chain as Tesla
  • Support up to 3C fast charge
  • Full charge in 18 minutes
  • Low temperature rise,
  • Excellent heat dissipation,
  • No need for water cooling,
